Disassembled Conveyor Belt Splicing Machine

Product Categories
Qingdao Running Machine Co.,Ltd
Contact Now

Disassembled Conveyor Belt Splicing Machine

Brand Name : RUNNING

Model Number : ZLJ-1500*830

Certification : CE

Place of Origin : QINGDAO CHINA

MOQ : 1 SET

Price : $8,000 ~ $10,000 / set

Payment Terms : T/T, L/C

Supply Ability : 50sets/month

Delivery Time : 7 working days

Packaging Details : Plywood case

Usage : Conveyor belt splicing

Applied belt width : 1500mm

Heating plate : 1720*830mm

Heating power : 20kw

Cooling method : Water cooling

Weight : 1200kg

Contact Now

Disassemble Aluminum Beam 1500mm Conveyor Belt Splicing Machine for sale

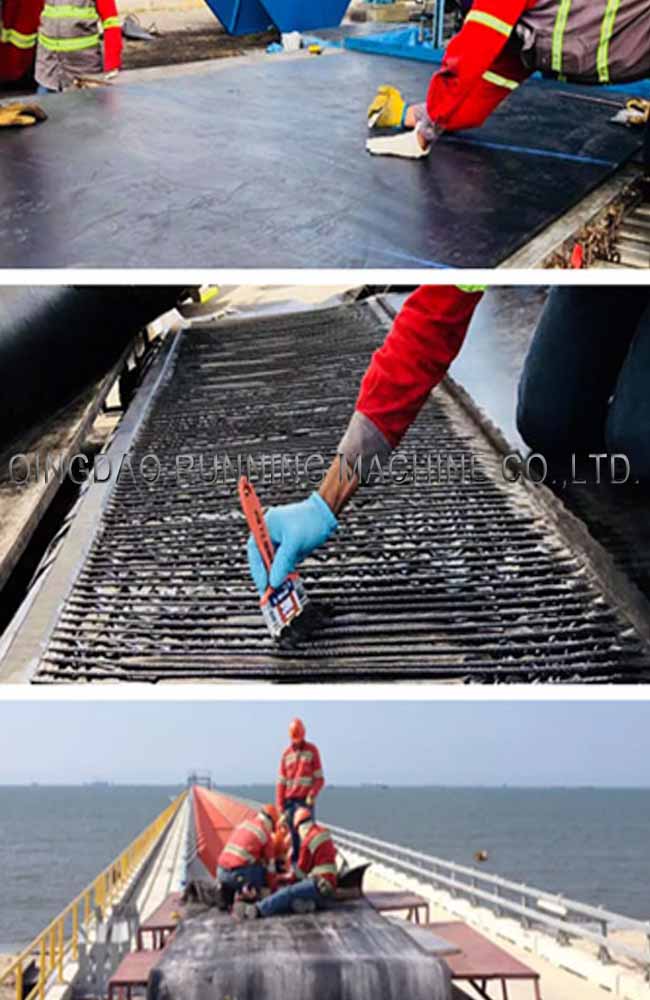

Conveyor belt splicing is the process of joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt. Because there are so many industries in which conveyor systems are employed, there are many types of conveyor belts and components. In order to correctly splice a belt, the type of belt, speed of conveyor belt system, materials traveling on the belt and conveyor belt environment must be taken into account. A conveyor belt splice is important in relation to the productivity of the belt. So the conveyor belt splicing press machine is the most important key.



Disassembled Conveyor Belt Splicing Machine



Machine specification of Conveyor Belt Splicing Machine:



Model

Belt Width

(mm)

 Power(kw)

Dimensions

(L*W*H mm)

 Weight(kg) Single Piece Weight(kg)
ZLJ-650*830 650 9.5 1370*830*630 430 45
ZLJ-650*1000 10.8 1370*1000*630 500 66
ZLJ-800*830 800 11.2 1520*830*630 535 70
ZLJ-800*1000 13.5 1520*1000*630 575 79
ZLJ-1000*830 1000 14.1 1720*830*630 595 82
ZLJ-1000*1000 15.7 1720*1000*630 620 95
ZLJ-1200*830 1200 16.5 1920*830*710 800 96
ZLJ-1200*1000 17.2 1920*1000*710 870 113
ZLJ-1400*830 1400 18.6 1930*830*760 930 107
ZLJ-1400*1000 20.7 2120*1000*760 1180 132
ZLJ-1600*830 1600 21.5 2320*830*800 1270 120
ZLJ-1600*1000 22.3 2320*1000*800 1460 146
ZLJ-1800*830 1800 23.3 2520*830*850 1380 137
ZLJ-1800*1000 25.6 2520*1000*850 1650 164
ZLJ-2000*830 2000 27.2 2720*830*950 1760 154
ZLJ-2000*1000 30 2720*1000*950 1860 182
ZLJ-2200*830 2200 29.2 2920*830*950 1860 165
ZLJ-2200*1000 34.1 2920*1000*950 1970 198

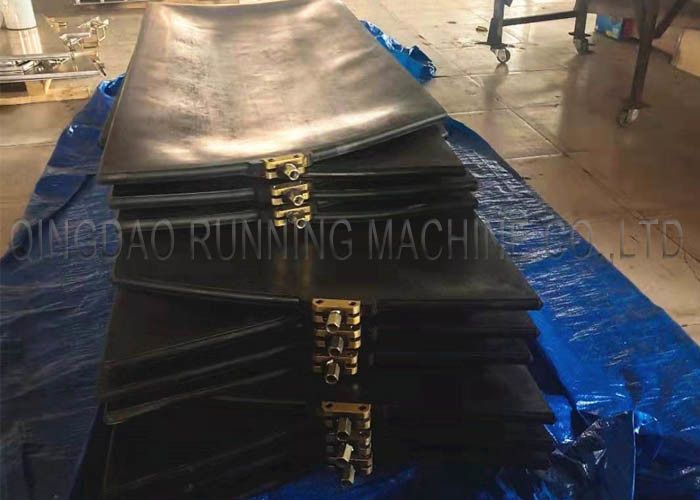

Our conveyor belt jointing vulcanizing machine use new designed water pressure bladder, which is made of rubber, for pressurizing. it has the advantages of more balanced pressure, better scalling, no rusting risk and lower leakage risk and longer service life.



Disassembled Conveyor Belt Splicing MachineDisassembled Conveyor Belt Splicing Machine

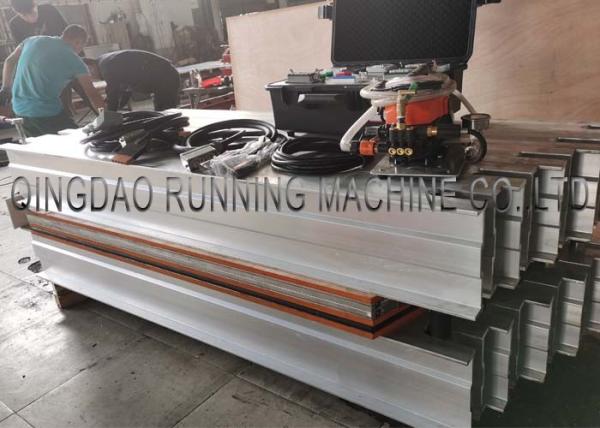

Shipping package of conveyor belt jointing vulcanizing machine:



Disassembled Conveyor Belt Splicing Machine



Other machines for your choice:



Disassembled Conveyor Belt Splicing Machine
